| Type: | Mulching Head |
|---|---|
| Attaches To: | Skid Steer |
| Operating Weight: | 2,500 lbs. – 2,700 lbs. |
| Cutting Wisth: | 61 in. – 71 in. |

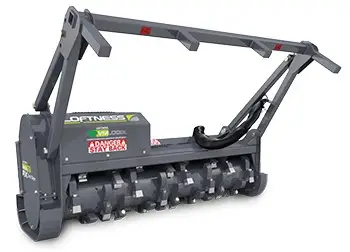

The Battle Ax features a unique rotor with built-in depth gauges to offer high performance with both sharpened knives and carbide cutting teeth. Models are available with both low- and high-flow skid steers.
The UMM/EX/VT – UMM/EX/SONIC – UMM/EX/VT/HP – UMM/EX/HP/SONIC mulchers are great for mulching vegetation and trees with a max. diameter of 18 in and are compatible with excavators from 20 to 36 t. Their hydraulic capacity ranges from 34 to 79 gal/min. The models are recommended for managing and controlling vegetation in wooded areas, maintaining green spaces, and anywhere a large mulching capacity is required. The line offers two types of hydraulic motors: the traditional fixed-displacement piston motor and the VT model with automatic variable displacement and increased torque for the most challenging tasks.
The BL4/EX/VT for 18-25 ton excavators mulches logs up to 12 in in diameter and comes in two working widths: 53 in and 63 in. The BL4/EX/VT is ideal for handling and removing vegetation in wooded areas, especially for jobs that require a large shredding capacity and speed. The rotor features Bite Limiter technology. Steel profiles limit the reach (bite) of the teeth, reducing the amount of power needed and guaranteeing constant working speed and excellent performance. The heat-treated forged-steel BL blades are made to last and can be sharpened to keep operating costs lower.
The Poly Chain belt drive transmission ensures optimum power transfer and reliability.
With its updated design, the UML/HY has increased its strength and durability.
The addition of the VT motor option has made the UML/HY VT one of the most productive units in its class.
The hydraulic motor is internally positioned in the frame to protect it from dirt and potential damage, ensuring maximum reliability throughout the life of the attachment.
The VT version with automatic variable displacement hydraulic motor increases productivity by up to 50% and simultaneously reduces fuel consumption.
BL2/EX/VT for 8-14 ton midsize excavators mulches trees with a max. diameter of 6 in and is available in two working widths: 39 in and 49 in.
The rotor features Bite Limiter technology.
Steel profiles limit the teeth depth of action, which reduces power demand and guarantees speed and exceptional performance every time.
Two types of fixed teeth can be used with the rotor: Mini BL blades and Mini C/3 teeth. BL2/EX/VT has a VT (Variable Torque) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.
