| Type: | Mulching Head |
|---|---|
| Attaches To: | Skid Steer |
| Operating Weight: | 1,250 lbs. – 1,392 lbs. |
| Cutting Wisth: | 51 in. – 61 in. |

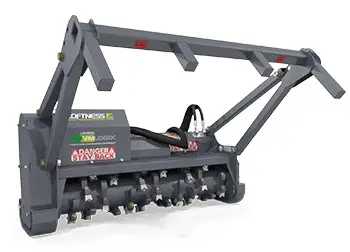

The Battle Ax features a unique rotor with built-in depth gauges to offer high performance with both sharpened knives and carbide cutting teeth. Models are available with both low – and high – flow skid steers.
The BL5/EX/VT – BL5/EX/SONIC for 24-36 ton excavators, mulches vegetation up to 16″ in diameter and has a working width of 62″. This head is ideal for handling and removing vegetation in wooded areas, especially when a large shredding capacity and fast operational speed is required. The rotor with Bite Limiter technology comes with special wear-resistant steel limiters that limit the teeth’s reach. This cuts down on power demand, promotes a consistent working speed, optimizes fuel consumption and ensures excellent performance when mulching any kind of wood.
With its updated design, the UML/HY has increased its strength and durability.
The addition of the VT motor option has made the UML/HY VT one of the most productive units in its class.
The hydraulic motor is internally positioned in the frame to protect it from dirt and potential damage, ensuring maximum reliability throughout the life of the attachment.
The VT version with automatic variable displacement hydraulic motor increases productivity by up to 50% and simultaneously reduces fuel consumption.
The DML/HY is the smallest, most versatile fixed hammer excavator mulcher on the market.
The VT automatic variable displacement hydraulic motor avoids any adjustment of the hydraulic levels on the excavator it is mounted too.
Both doors can be activated mechanically or hydraulically (optional) to allow for the mulching of trees (front door) and fine and fibrous material that does not require preventive removal (rear door).
This mulcher can be equipped with a standard 27cc motor or an optional 38cc motor to mount to excavators ranging from 5.5 to 7.5 tons. There is also an optional 17/34cc variable manual displacement hydraulic motor with mechanical adjustment that makes this model ideal for any excavator. The flow control valve ensures an easy and rapid mounting of the mulcher without adjustments or modifications to the hydraulic system of the excavator.
