FAE is the world leader in the design and production of heads for tractors, excavators, skid steers, special vehicles and tracked vehicles for forestry, agricultural, road and de-mining operations. With a range of over 90 products and 400 models, FAE is able to satisfy the most diverse of customer needs. FAE’s range of heads includes forestry mulchers, cutters, stump cutters, stone crushers, stabilizers and multifunction heads. For more details on FAE products give us a call or click on the contact button.
FAE’s hydraulic driven heads are designed for mulching, shredding and crushing. FAE offers solutions for a wide range of skid steer loaders, excavators and special hydraulic transmission vehicles. The product range includes forestry tillers, forestry mulchers, stump cutters and multitask heads that can be used for a variety of tasks.

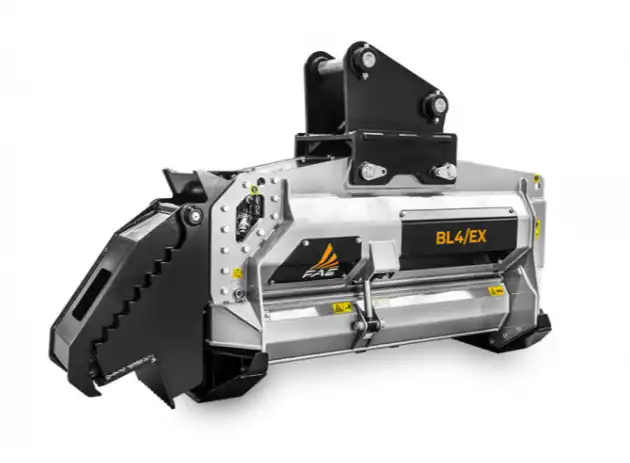

The BL4/EX/VT for 18-25 ton excavators mulches logs up to 12 in in diameter and comes in two working widths: 53 in and 63 in. The BL4/EX/VT is ideal for handling and removing vegetation in wooded areas, especially for jobs that require a large shredding capacity and speed. The rotor features Bite Limiter technology. Steel profiles limit the reach (bite) of the teeth, reducing the amount of power needed and guaranteeing constant working speed and excellent performance. The heat-treated forged-steel BL blades are made to last and can be sharpened to keep operating costs lower.
The Poly Chain belt drive transmission ensures optimum power transfer and reliability.
The BL5/EX/VT – BL5/EX/SONIC for 24-36 ton excavators, mulches vegetation up to 16″ in diameter and has a working width of 62″. This head is ideal for handling and removing vegetation in wooded areas, especially when a large shredding capacity and fast operational speed is required. The rotor with Bite Limiter technology comes with special wear-resistant steel limiters that limit the teeth’s reach. This cuts down on power demand, promotes a consistent working speed, optimizes fuel consumption and ensures excellent performance when mulching any kind of wood.
BL2/EX/VT for 8-14 ton midsize excavators mulches trees with a max. diameter of 6 in and is available in two working widths: 39 in and 49 in.
The rotor features Bite Limiter technology.
Steel profiles limit the teeth depth of action, which reduces power demand and guarantees speed and exceptional performance every time.
Two types of fixed teeth can be used with the rotor: Mini BL blades and Mini C/3 teeth. BL2/EX/VT has a VT (Variable Torque) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.
The DML/HY is the smallest, most versatile fixed hammer excavator mulcher on the market.
The VT automatic variable displacement hydraulic motor avoids any adjustment of the hydraulic levels on the excavator it is mounted too.
Both doors can be activated mechanically or hydraulically (optional) to allow for the mulching of trees (front door) and fine and fibrous material that does not require preventive removal (rear door).
The PML/HY is FAE’s smallest forestry mulcher head for excavators. It is perfect for clearing saplings and shredding brush up to 1.6 in in diameter. The PML/HY forestry mulcher can come equipped with a standard 8 cc engine or an optional 16 cc engine, and can be mounted on 1.5-3.5 ton excavators. The rotor on the PML/HY is available with two different types of teeth: the PML hammer or the Y/2 blade. Internal counter blades, flying debris protection, a rear roller, and steel construction provide professional quality and superior performance.
