FAE is the world leader in the design and production of heads for tractors, excavators, skid steers, special vehicles and tracked vehicles for forestry, agricultural, road and de-mining operations. With a range of over 90 products and 400 models, FAE is able to satisfy the most diverse of customer needs. FAE’s range of heads includes forestry mulchers, cutters, stump cutters, stone crushers, stabilizers and multifunction heads. For more details on FAE products give us a call or click on the contact button.
FAE’s hydraulic driven heads are designed for mulching, shredding and crushing. FAE offers solutions for a wide range of skid steer loaders, excavators and special hydraulic transmission vehicles. The product range includes forestry tillers, forestry mulchers, stump cutters and multitask heads that can be used for a variety of tasks.

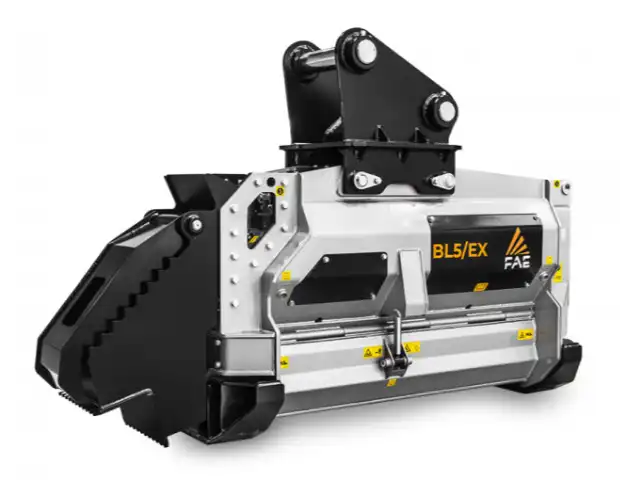

The BL5/EX/VT – BL5/EX/SONIC for 24-36 ton excavators, mulches vegetation up to 16″ in diameter and has a working width of 62″. This head is ideal for handling and removing vegetation in wooded areas, especially when a large shredding capacity and fast operational speed is required. The rotor with Bite Limiter technology comes with special wear-resistant steel limiters that limit the teeth’s reach. This cuts down on power demand, promotes a consistent working speed, optimizes fuel consumption and ensures excellent performance when mulching any kind of wood.
The Battle Ax features a unique rotor with built-in depth gauges to offer high performance with both sharpened knives and carbide cutting teeth. Models are available with both low – and high – flow skid steers.
The UMM/EX/VT – UMM/EX/SONIC – UMM/EX/VT/HP – UMM/EX/HP/SONIC mulchers are great for mulching vegetation and trees with a max. diameter of 18 in and are compatible with excavators from 20 to 36 t. Their hydraulic capacity ranges from 34 to 79 gal/min. The models are recommended for managing and controlling vegetation in wooded areas, maintaining green spaces, and anywhere a large mulching capacity is required. The line offers two types of hydraulic motors: the traditional fixed-displacement piston motor and the VT model with automatic variable displacement and increased torque for the most challenging tasks.
Specifically developed for excavators ranging from 18 – 25 tons.
Using key design features, such as interchangeable counter-blades and other engineering advantages, it approaches the performance levels of our largest model, the UMM/EX. Furthermore, the VT automatic variable displacement hydraulic motor increases efficiency. This allows the machine to carry out complex operations effortlessly while working on sides of the roads, along river banks and on steep slopes.
The BL4/EX/VT for 18-25 ton excavators mulches logs up to 12 in in diameter and comes in two working widths: 53 in and 63 in. The BL4/EX/VT is ideal for handling and removing vegetation in wooded areas, especially for jobs that require a large shredding capacity and speed. The rotor features Bite Limiter technology. Steel profiles limit the reach (bite) of the teeth, reducing the amount of power needed and guaranteeing constant working speed and excellent performance. The heat-treated forged-steel BL blades are made to last and can be sharpened to keep operating costs lower.
The Poly Chain belt drive transmission ensures optimum power transfer and reliability.
