FAE is the world leader in the design and production of heads for tractors, excavators, skid steers, special vehicles and tracked vehicles for forestry, agricultural, road and de-mining operations. With a range of over 90 products and 400 models, FAE is able to satisfy the most diverse of customer needs. FAE’s range of heads includes forestry mulchers, cutters, stump cutters, stone crushers, stabilizers and multifunction heads. For more details on FAE products give us a call or click on the contact button.
FAE’s hydraulic driven heads are designed for mulching, shredding and crushing. FAE offers solutions for a wide range of skid steer loaders, excavators and special hydraulic transmission vehicles. The product range includes forestry tillers, forestry mulchers, stump cutters and multitask heads that can be used for a variety of tasks.

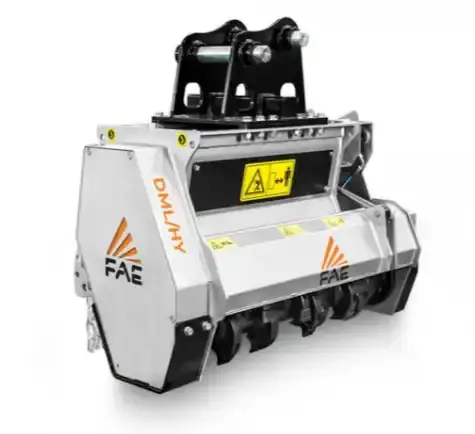

The DML/HY is the smallest, most versatile fixed hammer excavator mulcher on the market.
The VT automatic variable displacement hydraulic motor avoids any adjustment of the hydraulic levels on the excavator it is mounted too.
Both doors can be activated mechanically or hydraulically (optional) to allow for the mulching of trees (front door) and fine and fibrous material that does not require preventive removal (rear door).
The Battle Ax features a unique rotor with built-in depth gauges to offer high performance with both sharpened knives and carbide cutting teeth. Models are available with both low- and high-flow skid steers.
The UMM/EX/VT – UMM/EX/SONIC – UMM/EX/VT/HP – UMM/EX/HP/SONIC mulchers are great for mulching vegetation and trees with a max. diameter of 18 in and are compatible with excavators from 20 to 36 t. Their hydraulic capacity ranges from 34 to 79 gal/min. The models are recommended for managing and controlling vegetation in wooded areas, maintaining green spaces, and anywhere a large mulching capacity is required. The line offers two types of hydraulic motors: the traditional fixed-displacement piston motor and the VT model with automatic variable displacement and increased torque for the most challenging tasks.
BL3/EX/VT for 14-20 ton excavators mulches trees with a max. diameter of 20 cm and is available in two working widths: 134 cm and 158 cm.
The rotor features Bite Limiter technology.
Steel limiter rings limit the depth of cut, which reduces power demand and guarantees speed and exceptional performance.
The heat-treated forged-steel BL blades are durable and can be sharpened, lowering operating costs.
BL3/ EX/VT has a 110/60 cc VT (Variable Torque) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.
Thanks to its compact dimensions and versatility, the PMM/HY is the most requested model for grass and brush mulching in FAE’s small mulcher lineup. The mulcher can be equipped with a standard 16cc motor or an optional 27cc motor for mounting on 3.5 to 5.5 ton excavators. The flow control valve ensures an easy and rapid mounting of the mulcher without adjustments or modifications to the hydraulic system of the excavator.
