Lift it. Move it. Dig it. – Over 200 available attachments Avant produces highly versatile compact wheel loaders that can do a vast array of jobs thanks to their durable construction and a wide assortment of available attachments. Call ACT Construction Equipment today to find out which of these machines is perfect for your application. For more details on Avant products give us a call or click on the contact button.
Avant 200 series is an amazingly powerful and versatile compact loader considering its small size. The basic ideology with the articulated design and hydraulic 4×4 transmission is the same as in bigger Avant’s. Easy access to driver’s seat, ample space for operator, logical and easy-to-use controls and excellent visibility to the working area guarantee efficient operation. The Avant quick attach system for attachments and hydraulic multi-connector are standard features as well. The 200 series is especially strong in driving attachments with its max 11.1 gal/min hydraulics flow. The wide Avant attachment range allows working all year round be it earthmoving, lawn mowing, digging, load handling, snow removal, etc. 200 series is much more than a ride-on lawn mower, compact tractor or a quad bike.

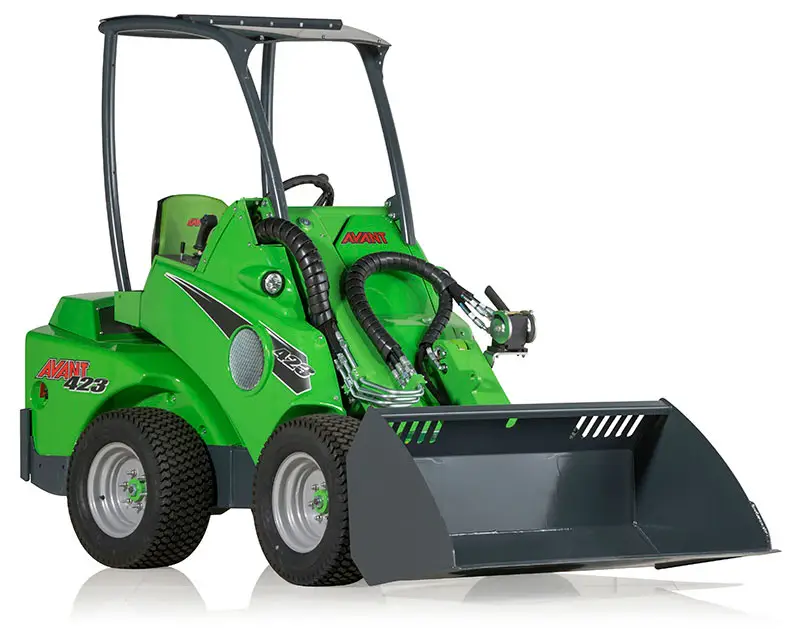

Avant 400 series loaders are real narrow access specialists and the smallest diesel model in the range. In spite of the small size and low weight of the 400 series, the lifting capacity of the loader is noteworthy with over 1200 lb handled with ease. The loader’s turning radius is less than two meters which means the loader turns almost on the spot. Total machine width can be as narrow as 36.5 in. The Avant telescopic boom is available for 400 series as well and with it, the lifting height is as high as 9.02 ft. Avant 400 series compact dimensions and easy maneuverability make it extremely versatile for many different purposes, be it groundcare, agriculture, landscaping, earthmoving, lifting and handling, etc. The machine has enough kick which guarantees the most efficient year-round work. 400 series power is sufficient for most Avant attachments.

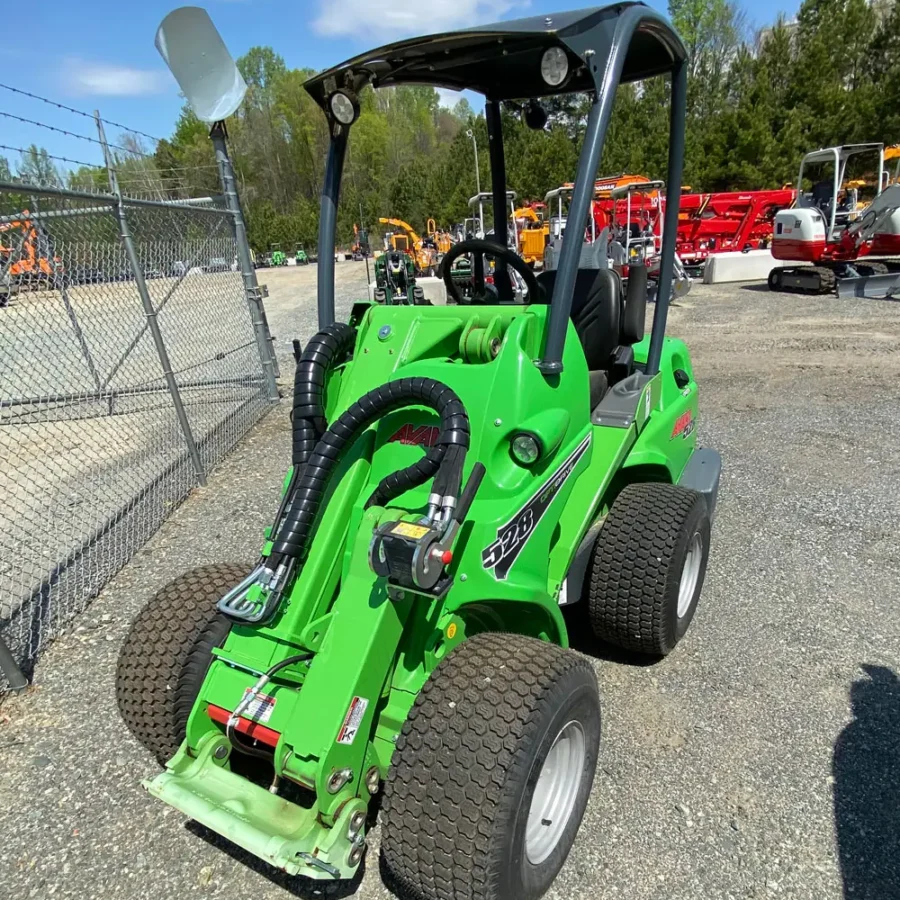

The 500 series is in the middle of Avant loader range in terms of size and performance. The 500 series loaders are well suited for a wide range of customer segments thanks to their power and straight forward hydraulics which is needed in many jobs. The compact dimensions and good maneuverability allow working in a large variety of environments. 500 series can also lift amazingly heavy loads compared to the size of the machine.
Avant 600 series is the real all-rounder in the range. It combines power, lift capacity and professional hydraulics which are in a very compact package. This makes 600 series a very popular machine for many professionals in landscaping, groundcare, construction, farming, horse stables, and many other customers. The max. 2.6-tonne lift capacity is just perfect for a multitude of jobs and the powerful auxiliary hydraulics runs almost all Avant attachments. The customers also like the easy transporting of 600 series. Thanks to the compact dimensions it is possible to fit both the loader and the attachments on the trailer, and inside the van if necessary.
Avant 700 series offers strong and real multi-use loaders for jobs where high lift capacity and/or drive speed is needed, yet at the same time the machine shall be as compact as possible. The 700 series is the perfect tool for street cleaning and other property maintenance tasks on narrow streets and yards in the cities, lifting and handling bales, etc. on farms, handling paving stones, moving materials on construction sites, and in many other applications. Easy transportation with a car trailer and a high drive speed enable quick transfers between work sites.
The flagship of the range, Avant 800 series pushes the limits of a compact loader. It has more lift height and capacity than ever before. It reaches all the way to tall mixer feeder wagons and can load a truck from one side to the far edge no need to drive around the truck when loading. 800 series can also handle stone pallets with ease thanks to the 4190 lb capacity. Yet it is compact enough to work in places where bigger machines cannot go and can be transported on a conventional car trailer.
Powerful hydraulic auger with many different auger diameters to suit various tasks, be it post hole boring, tree transplanting etc. Standard drive unit has hydraulic motor and direct drive to the auger. Heavy duty drive unit is equipped with planetary drive to increase torque, needed especially in hard ground conditions or when using large diameter augers. Replaceable tungsten teeth and pilot head are a standard feature in the auger drills. This enables drilling in hard ground as well as in sandstone. Combination of an articulated Avant and auger offer excellent visibility and minimum ground damage

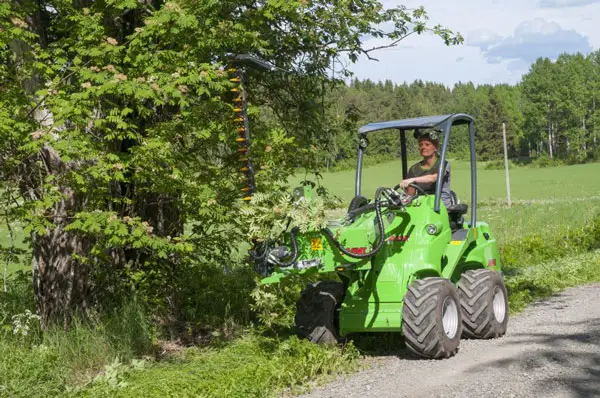

The S30 cutting bar mounts on the side arms with the S30 quick-attach system (both on the mechanical & hydraulic side arm). It cannot be mounted on the attachment coupling plate of the loader. S30 cutting bar is equipped with the same cutting blades and blade guides as the A35676 Cutting bar. The frame and actuator mechanism are however stronger, which means the S30 cutting bar is optimized for hedge cutting and doesn’t work too well with hay because of the higher frame. There are wear plates at each end of the cutting bar, useful when working on paved and asphalt surfaces for instance.
Avant was the first manufacturer to introduce a full-electric, battery-powered compact loader series to the market. Full electric loader with zero-emission and extremely low noise is the answer to future demands. Although the e series is electric it offers the same power and properties as the Avant 500 series which is equipped with a diesel engine. The Avant e5 has an integrated battery charger as standard, which makes it possible to charge batteries anywhere a 3-phase, 480 volt power outlet is available. Avant e5 is equipped with a maintenance-free Absorbent Glass Mat (AGM) battery. You can charge the e5 fully in 5 hours and work with it between one and two hours. This makes the e5 a very good option if your work allows you to charge for a longer period.
Flail mower is a drum-type cutter, intended for cutting of long grass, lade configuration scrub, bush and similar vegetation. It will cut up to 0.8 in thick tree branches with ease. The blades on the flail mower shaft move freely, so in case they hit a solid obstacle they will give in rather than break. This saves the blades costs when cutting in an unfamiliar place. Flail mower is the optimal cutting device for places where you need a lot of cutting power and a rougher cut will do. The most common grounds for flail mowers are places with taller vegetation like meadows, road banks, yard areas etc.

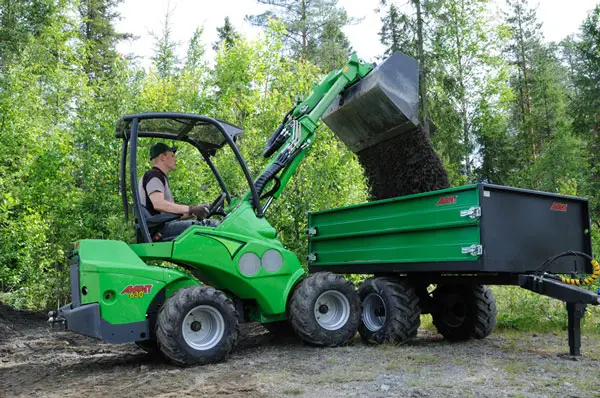

Avant general buckets are designed with the operator in mind. Without leaving the seat, the operator can see the front edge of the bucket. The sides of the general buckets flare out for complete emptying of all kinds of material. Also, there are no reinforcement plates inside the bucket to that would interfere with loading or emptying. To further enhance the operator’s visibility, there are narrow slots at the upper end of the bucket to allow the operator to see into the bucket and prevent spillage back towards the loader. Available with straight edge and with teeth.
Avant breakers are specially designed for use with Avant loaders. From three different models you can find suitable for all 400, 500, 600 and 700 series models. Avant loader with breaker is a very efficient tool in demolition and refurbishing operations: do the demolition with Avant and breaker, take the debris away with Avant and bucket very fast and effective.
The new lawn mower 1200 is a robust and efficient mower deck. It is equipped with the OptifloatTM floating system, developed by Avant, which guarantees optimal touch with the ground also on uneven lawns. The mower is also equipped with a safety valve which stops the blades when the mower is lifted off the ground. The deck of the new model is made of stamped steel. This makes mowing more efficient and the grass clippings don’t get stuck on the deck so easily.
Avant mini digger is an efficient solution for small digging operations where maximum digging depth of 47.2 in or 59.1 in is enough. It mounts directly on the quick attach plate of the loader and is operated with the auxiliary hydraulics control lever. Dumping to the side happens by turning the steering wheel of the Avant. Mini digger 150 is equipped with the S30 bucket quick attach system (same as on backhoe 260), which makes changing of bucket fast and easy and the bucket can also be mounted pointing forward if necessary. Bucket tilt adapter for mini digger 150 is available as an option.
Avant pallet fork is the right attachment for lifting and handling of different types of materials on pallets. Fork width can easily be adjusted thanks to the quick lock mechanism. The forks are made of high tensile forged steel and designed in accordance with the ISO2330 standard. Avant is an excellent machine for load handling thanks to the precise steering and drive control. Compared with a conventional forklift truck Avant is superior when working outdoors and on terrains, be it winter or summer.
Powerful pressure washer with 65 foot hose reel; easy to take anywhere with the Avant. Creates maximum 8 gal/min water flow and 2900 PSI pressure. Can be connected directly to a water hose or a barrel. Can suck water via inlet hose from as much as 10 feet below the level where the unit is. This is a very useful feature when taking water from a tank, reservoir, lake etc.
Avant stump grinder is an efficient and easy to operate tree stump remover. The cutting disc is mounted crosswise in relation to the loader, which means it throws the wood waste to the right side the waste doesn’t fly on the operator or the loader. In addition, the stump grinder is equipped with a protective rubber cover which prevents the wood from flying around.
