| Operating Capacity: | 1,984 lbs. |
|---|---|
| Operating Weight: | 3,616 lbs. |
| Rated Horsepower: | 18.2 |
| Bucket Breakout Force: | 2,425 lbs. |

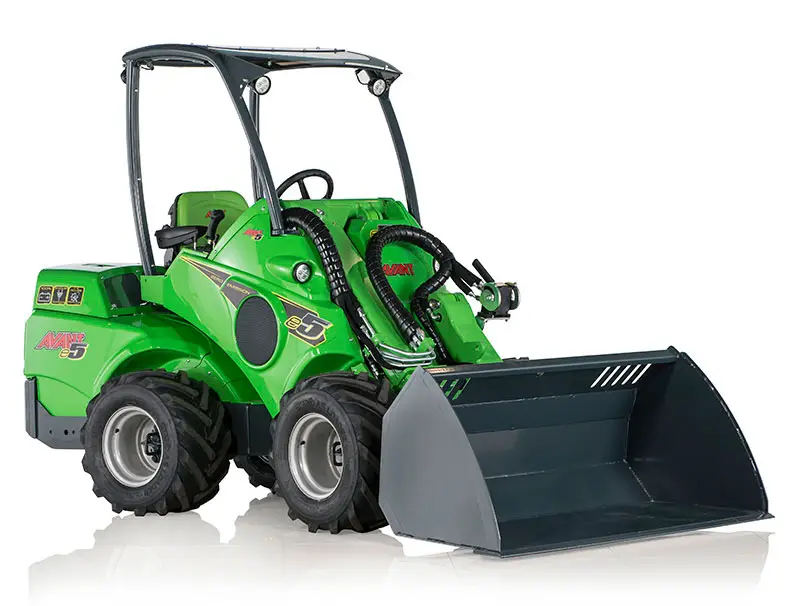

Avant was the first manufacturer to introduce a full-electric, battery-powered compact loader series to the market. Full electric loader with zero-emission and extremely low noise is the answer to future demands. Although the e series is electric it offers the same power and properties as the Avant 500 series which is equipped with a diesel engine. The Avant e5 has an integrated battery charger as standard, which makes it possible to charge batteries anywhere a 3-phase, 480 volt power outlet is available. Avant e5 is equipped with a maintenance-free Absorbent Glass Mat (AGM) battery. You can charge the e5 fully in 5 hours and work with it between one and two hours. This makes the e5 a very good option if your work allows you to charge for a longer period.
The S30 cutting bar mounts on the side arms with the S30 quick-attach system (both on the mechanical & hydraulic side arm). It cannot be mounted on the attachment coupling plate of the loader. S30 cutting bar is equipped with the same cutting blades and blade guides as the A35676 Cutting bar. The frame and actuator mechanism are however stronger, which means the S30 cutting bar is optimized for hedge cutting and doesn’t work too well with hay because of the higher frame. There are wear plates at each end of the cutting bar, useful when working on paved and asphalt surfaces for instance.
Powerful hydraulic auger with many different auger diameters to suit various tasks, be it post hole boring, tree transplanting etc. Standard drive unit has hydraulic motor and direct drive to the auger. Heavy duty drive unit is equipped with planetary drive to increase torque, needed especially in hard ground conditions or when using large diameter augers. Replaceable tungsten teeth and pilot head are a standard feature in the auger drills. This enables drilling in hard ground as well as in sandstone. Combination of an articulated Avant and auger offer excellent visibility and minimum ground damage
Powerful pressure washer with 65 foot hose reel; easy to take anywhere with the Avant. Creates maximum 8 gal/min water flow and 2900 PSI pressure. Can be connected directly to a water hose or a barrel. Can suck water via inlet hose from as much as 10 feet below the level where the unit is. This is a very useful feature when taking water from a tank, reservoir, lake etc.
The 500 series is in the middle of Avant loader range in terms of size and performance. The 500 series loaders are well suited for a wide range of customer segments thanks to their power and straight forward hydraulics which is needed in many jobs. The compact dimensions and good maneuverability allow working in a large variety of environments. 500 series can also lift amazingly heavy loads compared to the size of the machine.
