| Type: | Mulching Head |
|---|---|
| Attaches To: | Excavators |
| Operating Weight: | 2,210 lbs. |
| Cutting Wisth: | 31 in. – 51 in. |

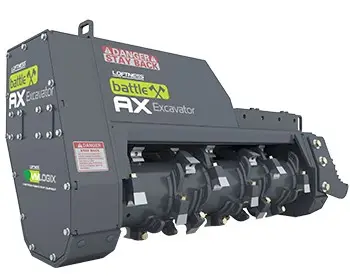

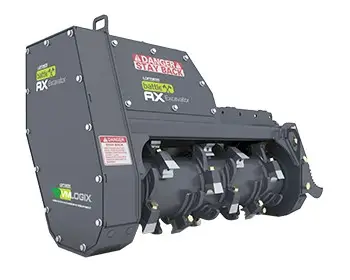

The Battle Ax is a truly unique mulching head from Loftness. It’s the only mulching head with a two-stage cutting chamber and the only rotor with depth gauges. Exclusive features like these offer unmatched performance to help you process material more thoroughly and complete jobs quicker. Not to mention, our products are backed by a large dealer network and superior customer support from our 100-percent employee-owned company based in the U.S.A. We’re proud of our Battle Ax mulching head and so are the people who run them.
Specifically developed for excavators ranging from 18 – 25 tons.
Using key design features, such as interchangeable counter-blades and other engineering advantages, it approaches the performance levels of our largest model, the UMM/EX. Furthermore, the VT automatic variable displacement hydraulic motor increases efficiency. This allows the machine to carry out complex operations effortlessly while working on sides of the roads, along river banks and on steep slopes.
The PMM/EX is a flail mower used to mulch underbrush, grass and bushes.
It is equipped with a variable manual displacement hydraulic piston motor that can be set to the carrier’s hydraulic specifications.
The stronger roller supports (optional) ensure the best performance and maximum reliability on difficult terrain.
The flow control valve ensures minimal setup of the mulcher without adjustments or modifications to the hydraulic system of the excavator.
BL3/EX/VT for 14-20 ton excavators mulches trees with a max. diameter of 20 cm and is available in two working widths: 134 cm and 158 cm.
The rotor features Bite Limiter technology.
Steel limiter rings limit the depth of cut, which reduces power demand and guarantees speed and exceptional performance.
The heat-treated forged-steel BL blades are durable and can be sharpened, lowering operating costs.
BL3/ EX/VT has a 110/60 cc VT (Variable Torque) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.
Thanks to its compact dimensions and versatility, the PMM/HY is the most requested model for grass and brush mulching in FAE’s small mulcher lineup. The mulcher can be equipped with a standard 16cc motor or an optional 27cc motor for mounting on 3.5 to 5.5 ton excavators. The flow control valve ensures an easy and rapid mounting of the mulcher without adjustments or modifications to the hydraulic system of the excavator.
