| Operating Weight: | 79,701 lbs. |
|---|---|
| Rated Horsepower: | 266.9 |
| Max Reach at Gound Level: | 35 ft. 6.0 in. |
| Maximum Digging Depth: | 22 ft. 10" |
| Maximum Torque (ft-lb): | 940.3 |
| Track Type: | Steel |

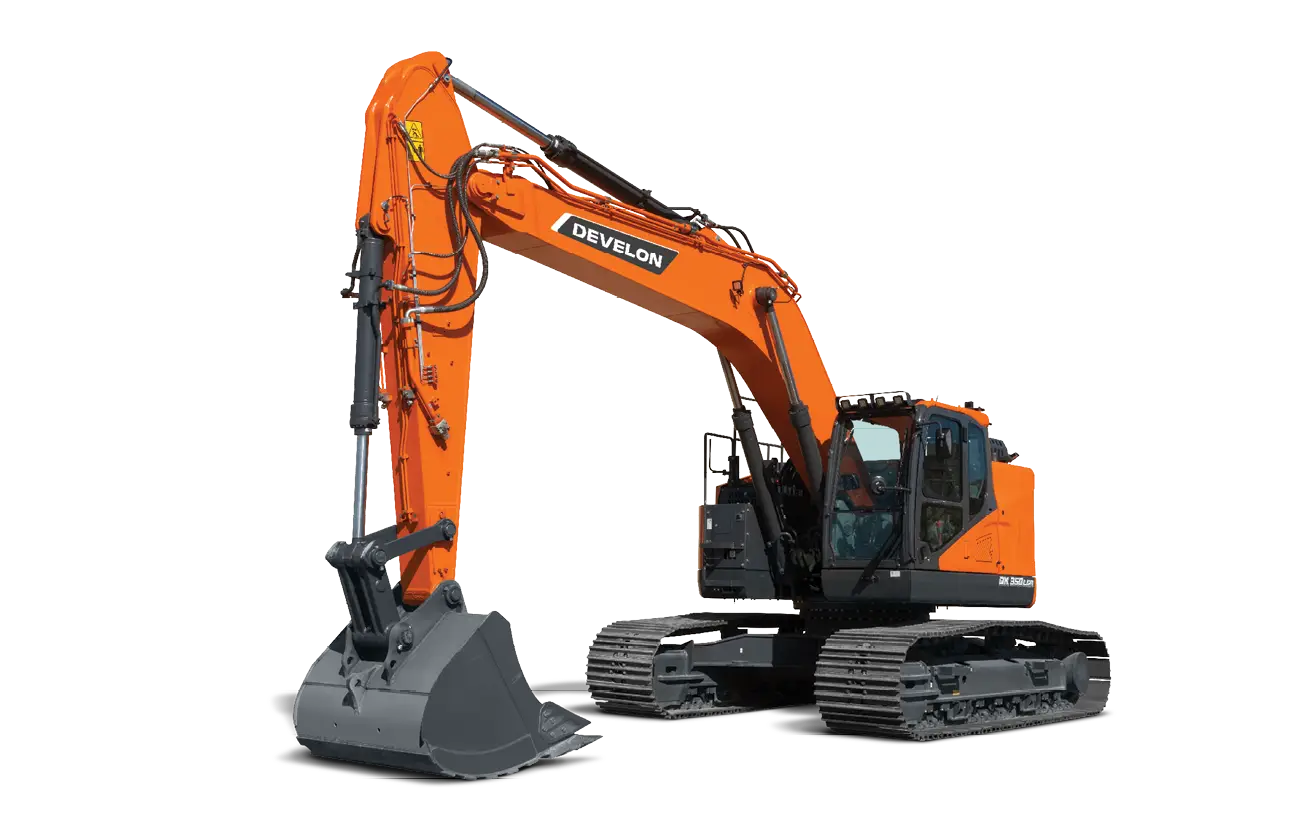

The DX350LCR-7 crawler excavator is a new size class for a DEVELON reduced tail swing machine. It’s ready for your next big challenge: offering powerful digging forces and lifting capacity, strong swing torque, fast cycle times, a tighter front minimum swing radius and a standard arm configuration. A long arm configuration is also available for additional dig depth and reach.
Four selectable power modes and a one-touch power boost feature give you better control over machine power and efficiency to help you take on difficult digging conditions.
Other productivity features include an auto downshift, increased ground clearance and maneuverability with the X-Chassis undercarriage design, and an optional front dozer blade.
Our latest offering in the 30- to 40-ton class, the DX360LC-9 crawler excavator advances safety on your job sites. The Virtual Walls (e-fencing) feature keeps operations safe by limiting the machine’s movement to specific distances that you set. For a full view of your surroundings, add the optional Smart around view monitor (SAVM) and human detection system (HDS). This setup uses six cameras, radar sensors and AI to provide a 360-degree view. The E-Stop system automatically slows the machine when it detects a person within 13 feet and brings the machine to a complete stop when someone is within 6.5 feet. Several innovative technologies on the DX360LC-9 help you get more work done in less time. The weighing system lets you easily monitor and manage volumes to ensure that dump trucks are loaded to their optimal capacities. Lift Assist and Advanced Lift Assist actively show you the machine’s current lifting capacity and alert you to potential tipping hazards. Breaker assist prevents blank firing, reduces wear on the machine and increases operator comfort. Work more accurately and efficiently with the factory-equipped 2D machine guidance and machine controls systems, providing guidance and grade control.
The DX170LC-7 delivers outstanding performance. Choose between four work modes, auto-idle and machine diagnostics. Smart Power Control (SPC) improves machine efficiency while maintaining productivity through variable speed control and pump torque control. Each of the four power modes will function with SPC engaged or disengaged; however, SPC only is active in the digging work mode. Auto shutdown helps owners save fuel while the machine isn’t working. The Mechatronics Design works in conjunction with the engine’s Electronic Control Unit, electronically synchronizing the engine and hydraulic system. The system enables power and work operating modes, electronic control of fuel consumption, auto-idle, hydraulic oil flow regulation and control, and machine diagnostics. It also improves control, allowing you to precisely place material and easily level ground.
The highly maneuverable, extremely versatile 24.7 hp DX35Z-7 mini excavator is engineered to take on challenging digging and lifting tasks in tight spaces.
The zero tail swing design makes navigating in urban areas and around confined worksites easier than ever. The increased counterweight helps decrease machine overhang and enhances digging and lifting performance.
Keep the standard arm for maximum breakout force and lifting ability, or choose the long-arm option to avoid machine repositioning or to make loading trucks faster and easier.
Other features include integrated slew brakes, rubber track undercarriage and backfill blade.
The TB2150 is the largest and most powerful excavator in the US Takeuchi line. Unique in its class are the standard pivot boom and dozer blade increasing versatility. The cab is completely redesigned and features a heated, air ride suspension seat, automatic climate control, and a color monitor panel to monitor machine performance and view the rear view camera. Multiple auxiliary circuits are standard equipment and make the TB2150 an impressive attachment platform.
