| Operating Weight: | Canopy: 9,950 lbs. |
|---|---|
| Operating Capacity: | 2,522 lbs. |
| Rated Horsepower: | 74.3 |
| Maximum Torque (ft-lb): | 195 |
| High Flow Hydraulics: | Available Option |
| Bucket Breakout Force: | 6,520 lbs. |
| Track Type: | Rubber |

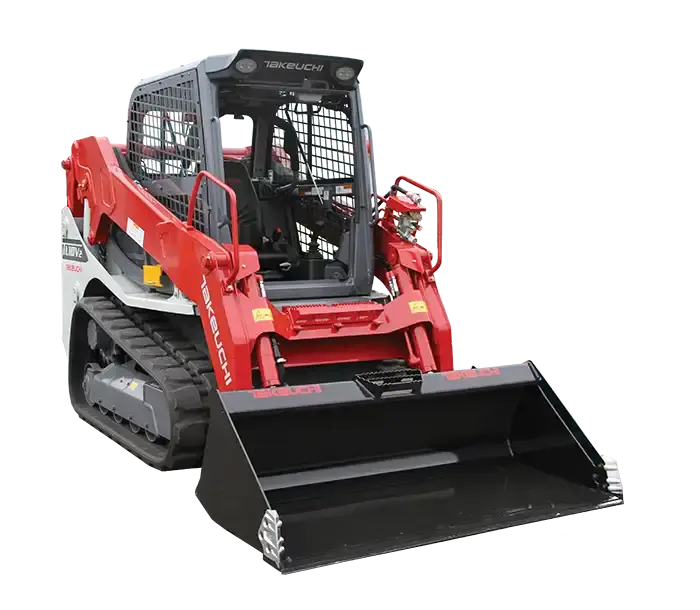

The TL10V2 features a vertical lift loader arrangement and is Final Tier 4 emissions compliant. The cab is completely redesigned and enlarged and features a low effort overhead door design for improved entry and egress. A quiet track design with wide block tread reduces vibration, noise levels, and improves ride quality.
The DEVELON DTL35 compact track loader is up for anything. Its vertical lift configuration and superior dump reach enable the machine to extend its forward reach, making it easier to deposit materials into high-sided trucks or other elevated areas. An optional 300-lb. additional counterweight further improves the machine’s lifting and hauling capacity.
The standard hydraulic quick-coupler-ready design and updated auxiliary hydraulics make for quick attachment changes.
The auto return-to-dig feature automatically returns the arms to the lowered position, saving time and delivering a more consistent digging depth. Its lift arm float enables attachments to automatically adjust to raised ground.
The Takeuchi TB260 compact excavator has exceptional power, performance, a wide working range, and impressive feature set. The cabin is spacious and well appointed ensuring operator comfort and efficiency.
The TL8R2 is the latest addition to Takeuchi’s fully redesigned track loader lineup setting yet another standard for performance, durability, serviceability, and operator comfort. The 74.3 hp TL8R2 features a radial lift loader design offering greater bucket breakout and lift arm forces. The TL8R2’s new undercarriage design features repositioned travel motors with internally routed drive lines, double and triple flange track rollers, as well as a quiet ride track design that greatly improves ride quality. This track loader come standard with many new features including a completely upgraded operator’s station with a redesigned overhead door, 5.7 color multi-informational display with rearview camera, LED lighting package, and high-torque spin turn. In addition to these standard features, optional features available on the TL8R2 include creep mode, load sensing auto shift, and high flow auxiliary hydraulics. With all these new features, the TL8R2 is sure to prove itself as one of Takeuchi’s most versatile and capable track loaders to date.
The TCR50-2 crawler dumper has an operating weight of 14,440 lbs. and a 118-horsepower engine, making it a versatile, well-balanced dump carrier that excels in a wide range of applications. With a 65-degree dumping angle and 8,157 lb. maximum loading weight, the TCR50-2 allows operators to carry up to 2.7 cu yds of material while rotating and dumping it in a single cycle. The machine’s ability to rotate the dump bed 180 degrees reduces both the need for constant repositioning and wear and tear of its rubber tracks.
The TCR50-2’s operator’s station features an intuitive 5.7” multi-information color display with standard 180° rearview camera, hydraulic joystick controls, adjustable suspension seat, powerful air conditioner, radio with USB support and large cup holder— all working together to keep operators informed, comfortable and less fatigued. Hydraulic pilot controls deliver smooth operation for both travel and dump body functions, while the foot throttle efficiently adjusts engine speed. Wide-opening maintenance covers offer exceptional access to the TCR50-2’s engine and routine inspection points.
