FAE is the world leader in the design and production of heads for tractors, excavators, skid steers, special vehicles and tracked vehicles for forestry, agricultural, road and de-mining operations. With a range of over 90 products and 400 models, FAE is able to satisfy the most diverse of customer needs. FAE’s range of heads includes forestry mulchers, cutters, stump cutters, stone crushers, stabilizers and multifunction heads. For more details on FAE products give us a call or click on the contact button.
FAE’s hydraulic driven heads are designed for mulching, shredding and crushing. FAE offers solutions for a wide range of skid steer loaders, excavators and special hydraulic transmission vehicles. The product range includes forestry tillers, forestry mulchers, stump cutters and multitask heads that can be used for a variety of tasks.

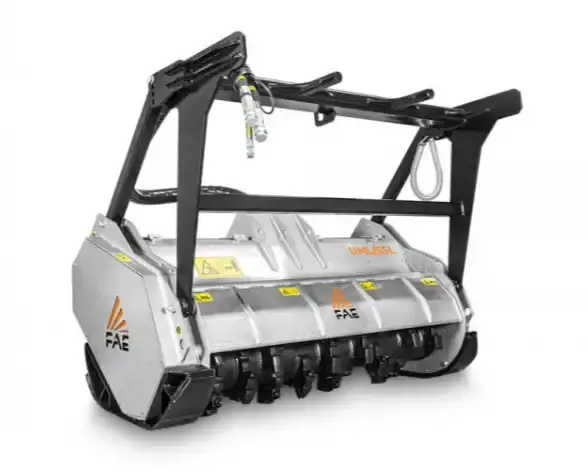

Robust and compact, the UML/SSL/VT is renowned for its ergonomic design that guarantees excellent visibility for the operator during various situations. Thanks to the diverter valve kit option, it can be utilized with any brand of skid steer on the market.
With automatic variable displacement hydraulic motor increases productivity by up to 50% and simultaneously reduces fuel consumption.
Specifically developed for excavators ranging from 18 – 25 tons.
Using key design features, such as interchangeable counter-blades and other engineering advantages, it approaches the performance levels of our largest model, the UMM/EX. Furthermore, the VT automatic variable displacement hydraulic motor increases efficiency. This allows the machine to carry out complex operations effortlessly while working on sides of the roads, along river banks and on steep slopes.
BL3/EX/VT for 14-20 ton excavators mulches trees with a max. diameter of 20 cm and is available in two working widths: 134 cm and 158 cm.
The rotor features Bite Limiter technology.
Steel limiter rings limit the depth of cut, which reduces power demand and guarantees speed and exceptional performance.
The heat-treated forged-steel BL blades are durable and can be sharpened, lowering operating costs.
BL3/ EX/VT has a 110/60 cc VT (Variable Torque) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.
The PML/HY is FAE’s smallest forestry mulcher head for excavators. It is perfect for clearing saplings and shredding brush up to 1.6 in in diameter. The PML/HY forestry mulcher can come equipped with a standard 8 cc engine or an optional 16 cc engine, and can be mounted on 1.5-3.5 ton excavators. The rotor on the PML/HY is available with two different types of teeth: the PML hammer or the Y/2 blade. Internal counter blades, flying debris protection, a rear roller, and steel construction provide professional quality and superior performance.
The DML/SSL forestry mulcher, designed for skid steer from 50 to 75 hp, is able to shred material up to 5” in diameter. This head is ideal to have high productivity in vegetation management and provide high shredding capacity in wooded and forestry areas, where the agility and compactness of a skid steer is required. The head is designed to offer high productivity, durability and ease of maintenance for the operator. The DML/SSL is available in VT version with fixed tooth rotor or in BL version with Bite Limiter rotor with fixed blades. For the VT or BL versions, Sonic technology is available, a FAE exclusive.
