FAE is the world leader in the design and production of heads for tractors, excavators, skid steers, special vehicles and tracked vehicles for forestry, agricultural, road and de-mining operations. With a range of over 90 products and 400 models, FAE is able to satisfy the most diverse of customer needs. FAE’s range of heads includes forestry mulchers, cutters, stump cutters, stone crushers, stabilizers and multifunction heads. For more details on FAE products give us a call or click on the contact button.
FAE’s hydraulic driven heads are designed for mulching, shredding and crushing. FAE offers solutions for a wide range of skid steer loaders, excavators and special hydraulic transmission vehicles. The product range includes forestry tillers, forestry mulchers, stump cutters and multitask heads that can be used for a variety of tasks.

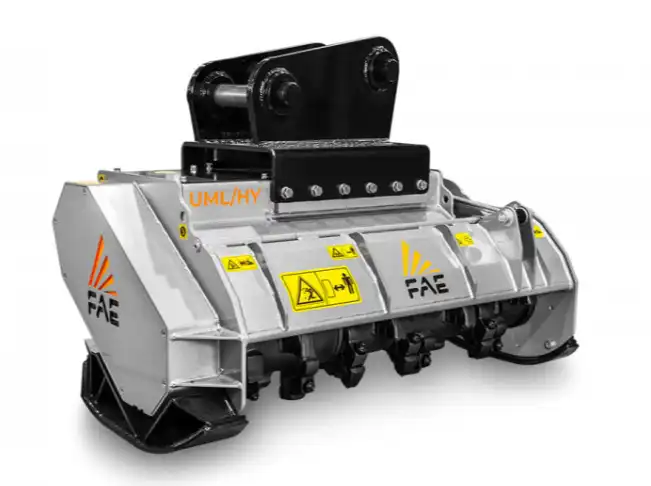

With its updated design, the UML/HY has increased its strength and durability.
The addition of the VT motor option has made the UML/HY VT one of the most productive units in its class.
The hydraulic motor is internally positioned in the frame to protect it from dirt and potential damage, ensuring maximum reliability throughout the life of the attachment.
The VT version with automatic variable displacement hydraulic motor increases productivity by up to 50% and simultaneously reduces fuel consumption.
The UMM/EX/VT – UMM/EX/SONIC – UMM/EX/VT/HP – UMM/EX/HP/SONIC mulchers are great for mulching vegetation and trees with a max. diameter of 18 in and are compatible with excavators from 20 to 36 t. Their hydraulic capacity ranges from 34 to 79 gal/min. The models are recommended for managing and controlling vegetation in wooded areas, maintaining green spaces, and anywhere a large mulching capacity is required. The line offers two types of hydraulic motors: the traditional fixed-displacement piston motor and the VT model with automatic variable displacement and increased torque for the most challenging tasks.
The BL4/EX/VT for 18-25 ton excavators mulches logs up to 12 in in diameter and comes in two working widths: 53 in and 63 in. The BL4/EX/VT is ideal for handling and removing vegetation in wooded areas, especially for jobs that require a large shredding capacity and speed. The rotor features Bite Limiter technology. Steel profiles limit the reach (bite) of the teeth, reducing the amount of power needed and guaranteeing constant working speed and excellent performance. The heat-treated forged-steel BL blades are made to last and can be sharpened to keep operating costs lower.
The Poly Chain belt drive transmission ensures optimum power transfer and reliability.
The PMM/EX is a flail mower used to mulch underbrush, grass and bushes.
It is equipped with a variable manual displacement hydraulic piston motor that can be set to the carrier’s hydraulic specifications.
The stronger roller supports (optional) ensure the best performance and maximum reliability on difficult terrain.
The flow control valve ensures minimal setup of the mulcher without adjustments or modifications to the hydraulic system of the excavator.

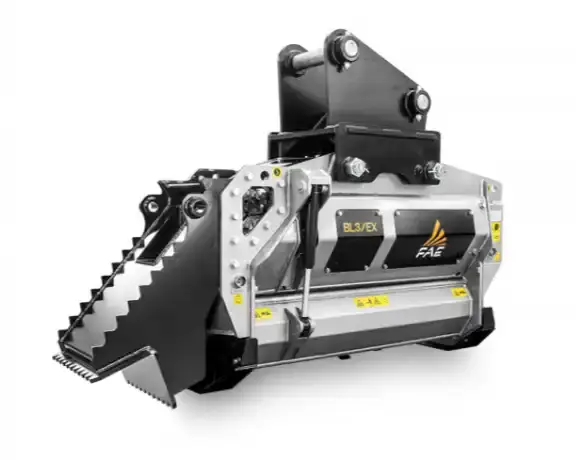

BL3/EX/VT for 14-20 ton excavators mulches trees with a max. diameter of 20 cm and is available in two working widths: 134 cm and 158 cm.
The rotor features Bite Limiter technology.
Steel limiter rings limit the depth of cut, which reduces power demand and guarantees speed and exceptional performance.
The heat-treated forged-steel BL blades are durable and can be sharpened, lowering operating costs.
BL3/ EX/VT has a 110/60 cc VT (Variable Torque) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.
