FAE is the world leader in the design and production of heads for tractors, excavators, skid steers, special vehicles and tracked vehicles for forestry, agricultural, road and de-mining operations. With a range of over 90 products and 400 models, FAE is able to satisfy the most diverse of customer needs. FAE’s range of heads includes forestry mulchers, cutters, stump cutters, stone crushers, stabilizers and multifunction heads. For more details on FAE products give us a call or click on the contact button.
FAE’s hydraulic driven heads are designed for mulching, shredding and crushing. FAE offers solutions for a wide range of skid steer loaders, excavators and special hydraulic transmission vehicles. The product range includes forestry tillers, forestry mulchers, stump cutters and multitask heads that can be used for a variety of tasks.

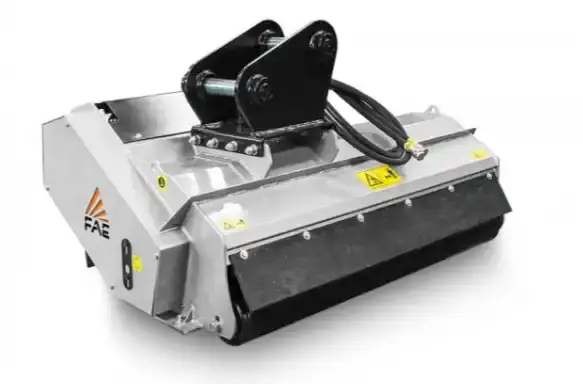

The PML/HY is FAE’s smallest forestry mulcher head for excavators. It is perfect for clearing saplings and shredding brush up to 1.6 in in diameter. The PML/HY forestry mulcher can come equipped with a standard 8 cc engine or an optional 16 cc engine, and can be mounted on 1.5-3.5 ton excavators. The rotor on the PML/HY is available with two different types of teeth: the PML hammer or the Y/2 blade. Internal counter blades, flying debris protection, a rear roller, and steel construction provide professional quality and superior performance.
The Battle Ax features a unique rotor with built-in depth gauges to offer high performance with both sharpened knives and carbide cutting teeth. Models are available with both low- and high-flow skid steers.
Specifically developed for excavators ranging from 18 – 25 tons.
Using key design features, such as interchangeable counter-blades and other engineering advantages, it approaches the performance levels of our largest model, the UMM/EX. Furthermore, the VT automatic variable displacement hydraulic motor increases efficiency. This allows the machine to carry out complex operations effortlessly while working on sides of the roads, along river banks and on steep slopes.
The BL4/EX/VT for 18-25 ton excavators mulches logs up to 12 in in diameter and comes in two working widths: 53 in and 63 in. The BL4/EX/VT is ideal for handling and removing vegetation in wooded areas, especially for jobs that require a large shredding capacity and speed. The rotor features Bite Limiter technology. Steel profiles limit the reach (bite) of the teeth, reducing the amount of power needed and guaranteeing constant working speed and excellent performance. The heat-treated forged-steel BL blades are made to last and can be sharpened to keep operating costs lower.
The Poly Chain belt drive transmission ensures optimum power transfer and reliability.
FAE introduces a new line of professional mulchers for excavators equipped with Bite Limiter technology.
Special steel limiter rings limit the depth of blade action, reducing the demand for power, guaranteeing speed and exceptional performance.
The BL1/EX – BL1/EX/VT (for 4-7.5 t excavators) has a 31 in working width and can mulch logs up to 5 in diameter.
The piston engine (with manually controlled variable displacement) makes it easy to use this mulcher on different excavators with different oil flow rates.
The BL1/ EX-BL1/EX/VT has a rotor equipped with a heat-treated forged steel tooth holder, together with Type Mini BL blades.
This light, compact mulcher is easy to maneuver and perfect for various types of forestry work.
