FAE is the world leader in the design and production of heads for tractors, excavators, skid steers, special vehicles and tracked vehicles for forestry, agricultural, road and de-mining operations. With a range of over 90 products and 400 models, FAE is able to satisfy the most diverse of customer needs. FAE’s range of heads includes forestry mulchers, cutters, stump cutters, stone crushers, stabilizers and multifunction heads. For more details on FAE products give us a call or click on the contact button.
FAE’s hydraulic driven heads are designed for mulching, shredding and crushing. FAE offers solutions for a wide range of skid steer loaders, excavators and special hydraulic transmission vehicles. The product range includes forestry tillers, forestry mulchers, stump cutters and multitask heads that can be used for a variety of tasks.
FAE introduces a new line of professional mulchers for excavators equipped with Bite Limiter technology.
Special steel limiter rings limit the depth of blade action, reducing the demand for power, guaranteeing speed and exceptional performance.

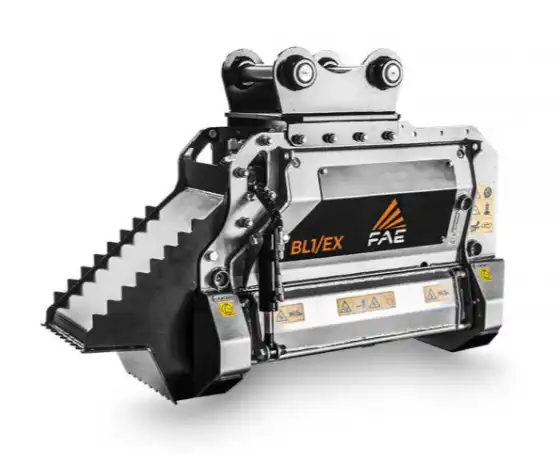

The BL1/EX – BL1/EX/VT (for 4-7.5 t excavators) has a 31 in working width and can mulch logs up to 5 in diameter.
The piston engine (with manually controlled variable displacement) makes it easy to use this mulcher on different excavators with different oil flow rates.
The BL1/ EX-BL1/EX/VT has a rotor equipped with a heat-treated forged steel tooth holder, together with Type Mini BL blades.
This light, compact mulcher is easy to maneuver and perfect for various types of forestry work.
Specifically developed for excavators ranging from 18 – 25 tons.
Using key design features, such as interchangeable counter-blades and other engineering advantages, it approaches the performance levels of our largest model, the UMM/EX. Furthermore, the VT automatic variable displacement hydraulic motor increases efficiency. This allows the machine to carry out complex operations effortlessly while working on sides of the roads, along river banks and on steep slopes.
The BL4/EX/VT for 18-25 ton excavators mulches logs up to 12 in in diameter and comes in two working widths: 53 in and 63 in. The BL4/EX/VT is ideal for handling and removing vegetation in wooded areas, especially for jobs that require a large shredding capacity and speed. The rotor features Bite Limiter technology. Steel profiles limit the reach (bite) of the teeth, reducing the amount of power needed and guaranteeing constant working speed and excellent performance. The heat-treated forged-steel BL blades are made to last and can be sharpened to keep operating costs lower.
The Poly Chain belt drive transmission ensures optimum power transfer and reliability.
This mulcher can be equipped with a standard 27cc motor or an optional 38cc motor to mount to excavators ranging from 5.5 to 7.5 tons. There is also an optional 17/34cc variable manual displacement hydraulic motor with mechanical adjustment that makes this model ideal for any excavator. The flow control valve ensures an easy and rapid mounting of the mulcher without adjustments or modifications to the hydraulic system of the excavator.
The DML/SSL forestry mulcher, designed for skid steer from 50 to 75 hp, is able to shred material up to 5” in diameter. This head is ideal to have high productivity in vegetation management and provide high shredding capacity in wooded and forestry areas, where the agility and compactness of a skid steer is required. The head is designed to offer high productivity, durability and ease of maintenance for the operator. The DML/SSL is available in VT version with fixed tooth rotor or in BL version with Bite Limiter rotor with fixed blades. For the VT or BL versions, Sonic technology is available, a FAE exclusive.
