| Operating Weight: | 6,173 lbs. |
|---|---|
| Rated Horsepower: | 24.7 |
| Maximum Digging Depth: | 8 ft. 8 in. |

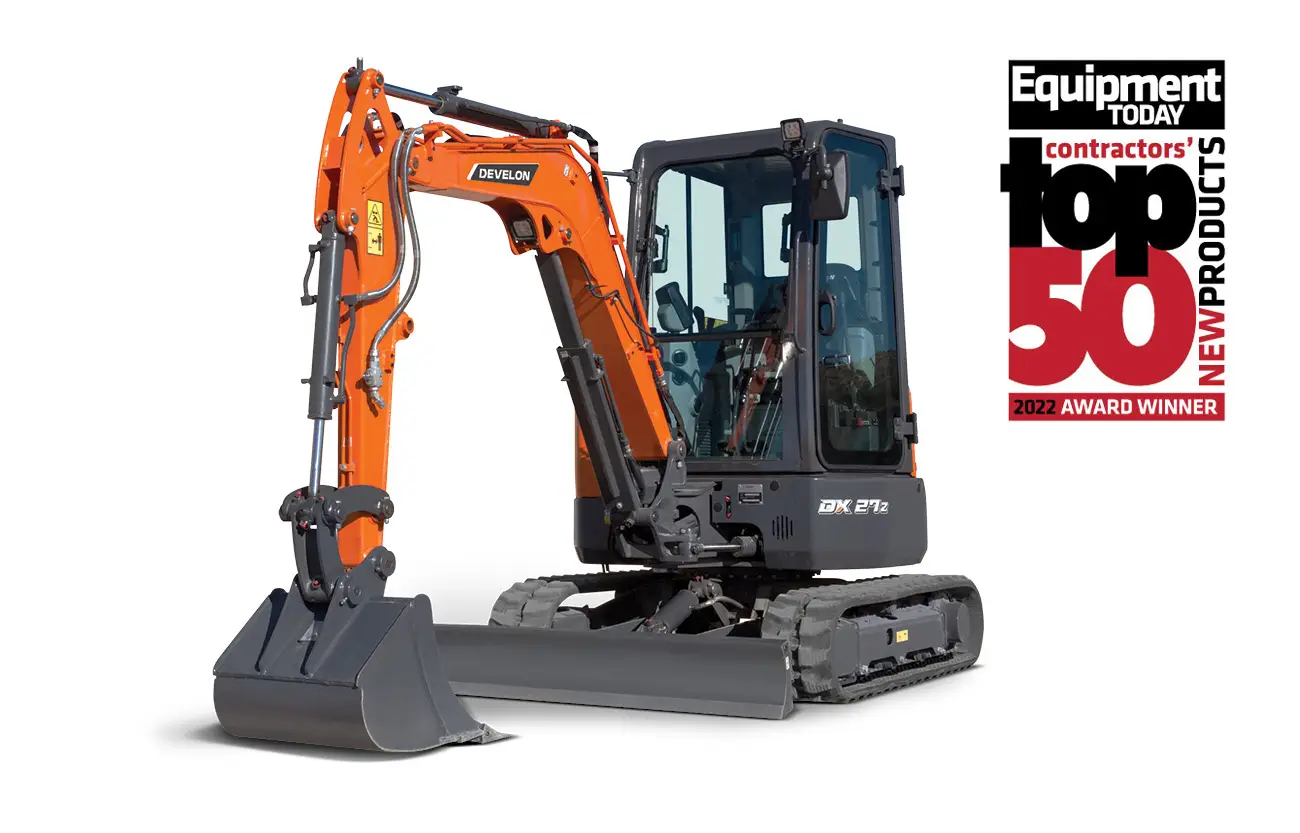

The 24.7 hp, 6,171 lb. DX27Z-7 mini excavator provides a new size class within the Develon lineup. Featuring a zero tail swing design and a 61-inch width, it can travel between homes on tight lot lines or work next to existing structures where other equipment doesn’t fit. Maneuverable and powerful, it can take on projects previously done using manual labor.
The DX27Z-7 features an increased, integrated counterweight to enhance digging and lifting performance, a backfill blade, and a rubber track undercarriage for superior flotation and traction. A long-arm option is available when you need more reach and dig depth.
The TB395W, weighing 23,424 lbs. with a 114-horsepower engine, combines powerful excavating capabilities with a maximum dig depth of 13 ft 5.2 in and superior on-road performance, with speeds up to 18 mph.
The standard two-piece, heavy-duty swing boom enables operators to dig further away from the machine and also allows for closer digging when needed, while the hydraulic outriggers and a dozer blade greatly enhance the machine’s stability.
The newest excavator in the FR series, the TB257FR features a side-to-side (STS) offset boom coupled with the tight tail swing for unmatched visibility to the work equipment and enables it to rotate fully with very little overhang. With an operating weight of 12,930 lb, a bucket breakout force of 10,431 lb and multiple hydraulic auxiliary circuits makes the TB257FR an outstanding attachment platform and perfect for limited space job sites. Its low center of gravity and optimized counterweight placement creates an extremely stable platform with lifting capabilities similar to that of a conventional machine.
Loaded with state-of-the-art technology and a fresh well-appointed cabin with intuitive functions, the TB335R represents the first short tail swing compact excavator offering in the 3.5t class for Takeuchi. Features include updated high-definition monitors with greater functionality, jog dial controls, wraparound counterweight, dedicated coupler circuit on cab models, and excellent service access for easy maintenance. The TB335R delivers a superior working range and excellent power that ensures all-day productivity and performance.
The TB210R delivers excellent performance in an ultra compact design. It has an impressive feature set that includes pattern change valve, pilot controls, retractable undercarriage, minimum tail swing, and a two post ROPS foldable frame. It’s the ideal excavator for the most confined applications.
