| Operating Weight: | 57,132 lbs. |
|---|---|
| Rated Horsepower: | 170.3 |
| Bucket Capacity (yards): | 1.2 |
| Maximum Digging Depth: | 21 ft. 11 in. |
| Maximum Torque (ft-lb): | 593 |
| Track Type: | Steel |
DEVELON -7 Series crawler excavators offer exclusive technologies and options to help boost fuel efficiency and lower fuel expenses. The fuel-efficient Tier 4-compliant DEVELON diesel engine includes an auto shutdown feature that saves fuel while helping to lower warranty hours, and an auto idle feature that idles the engine automatically when machine functions aren’t used. The exclusive Smart Power Control (SPC) improves efficiency by monitoring two machine systems to reduce unnecessary engine load.

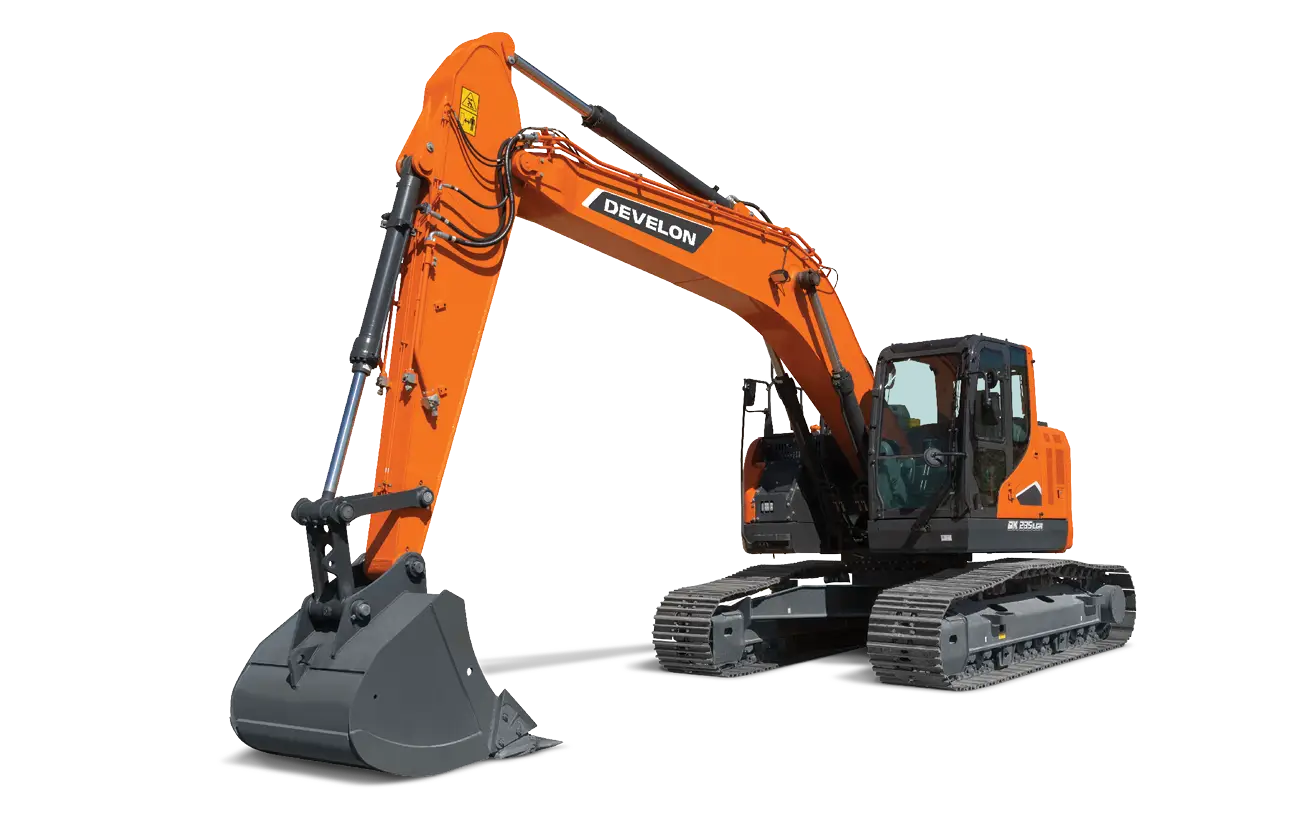

The updated cab environment on the DX235CLR-7 crawler excavator includes more comfort features, smart controls and improved visibility to help you attract and keep top operators. Cab comforts include low noise and vibration levels and automotive-style heating and cooling — with an optional heated/cooled seat. Ergonomically designed joystick controls are easy to use, and a multilingual Smart Touch display puts all important information on one screen. A rearview camera is standard; a 360-degree all-around view monitoring (AVM) system can be added. Seven LED lights are standard.
A new offering in the 23-ton class, the DX230LC-9 crawler excavator advances safety on your job sites. The Virtual Walls (e-fencing) feature makes this excavator ideal for tight urban spaces by limiting the machine’s movement to specific distances that you set. For a full view of your surroundings, add the optional Smart around view monitor (SAVM) and human detection system (HDS). This setup uses six cameras, radar sensors and AI to provide a 360-degree view.The E-Stop system automatically slows the machine when it detects a person within 13 feet and brings the machine to a complete stop when someone is within 6.5 feet. Several innovative technologies on the DX230LC-9 help you get more work done in less time. The weighing system lets you easily monitor and manage volumes to ensure that dump trucks are loaded to their optimal capacities. Lift Assist and Advanced Lift Assist actively show you the machine’s current lifting capacity and alert you to potential tipping hazards. Breaker assist prevents blank firing and reduces wear on the machine. Work more accurately and efficiently with the factory-equipped 2D machine guidance and machine controls systems, providing guidance and grade control.
The DX490LC-7 crawler excavator, available in standard arm or long arm configurations, delivers the powerful digging forces required for today’s work, plus it offers improved lifting capabilities and fast cycle times to help you move more materials in less time. Need to break into tougher materials? The one-touch power boost button momentarily increases hydraulic power when needed. An optional intelligent floating boom mode improves cycle times and is ideal for finishing work, allowing the boom to move freely with the contours of the ground.
Dig into high-impact materials with confidence thanks to the reinforced arm and boom, and heavy-duty wear plates that bolt on at the end of the machine for maximum durability.
The removable counterweight can be hydraulically lowered to its own trailer for easy transport to the job site.
The DX170LC-7 delivers outstanding performance. Choose between four work modes, auto-idle and machine diagnostics. Smart Power Control (SPC) improves machine efficiency while maintaining productivity through variable speed control and pump torque control. Each of the four power modes will function with SPC engaged or disengaged; however, SPC only is active in the digging work mode. Auto shutdown helps owners save fuel while the machine isn’t working. The Mechatronics Design works in conjunction with the engine’s Electronic Control Unit, electronically synchronizing the engine and hydraulic system. The system enables power and work operating modes, electronic control of fuel consumption, auto-idle, hydraulic oil flow regulation and control, and machine diagnostics. It also improves control, allowing you to precisely place material and easily level ground.
The 24.7 hp, 6,171 lb. DX27Z-7 mini excavator provides a new size class within the Develon lineup. Featuring a zero tail swing design and a 61-inch width, it can travel between homes on tight lot lines or work next to existing structures where other equipment doesn’t fit. Maneuverable and powerful, it can take on projects previously done using manual labor.
The DX27Z-7 features an increased, integrated counterweight to enhance digging and lifting performance, a backfill blade, and a rubber track undercarriage for superior flotation and traction. A long-arm option is available when you need more reach and dig depth.
ACT representatives are ready to help you with equipment sales, service, parts and rentals.
