| Operating Capacity: | 1,750 – 2,100 lbs. |
|---|---|
| Operating Weight: | 2,645 + 375 lbs. |
| Rated Horsepower: | 22 – 25 |
| Bucket Breakout Force: | 2,425 lbs. |

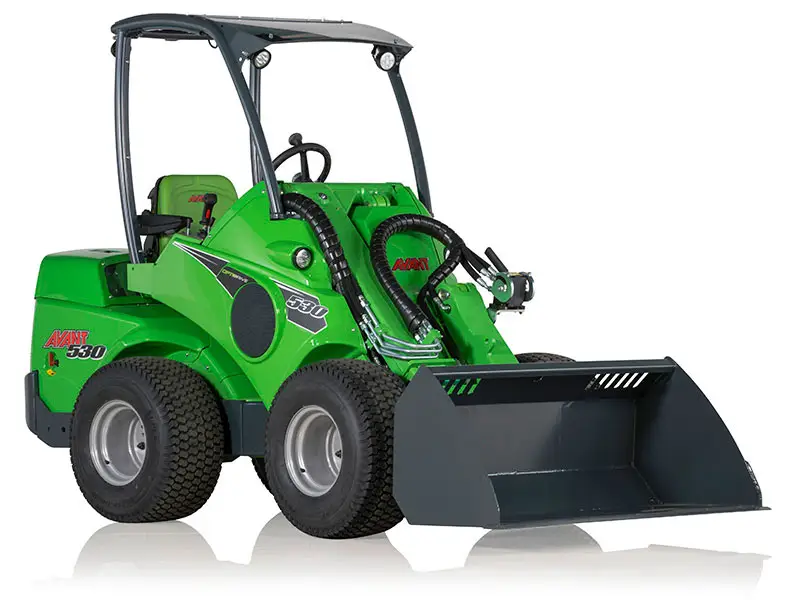

The 500 series is in the middle of Avant loader range in terms of size and performance. The 500 series loaders are well suited for a wide range of customer segments thanks to their power and straight forward hydraulics which is needed in many jobs. The compact dimensions and good maneuverability allow working in a large variety of environments. 500 series can also lift amazingly heavy loads compared to the size of the machine.
Avant mini digger is an efficient solution for small digging operations where maximum digging depth of 47.2 in or 59.1 in is enough. It mounts directly on the quick attach plate of the loader and is operated with the auxiliary hydraulics control lever. Dumping to the side happens by turning the steering wheel of the Avant. Mini digger 150 is equipped with the S30 bucket quick attach system (same as on backhoe 260), which makes changing of bucket fast and easy and the bucket can also be mounted pointing forward if necessary. Bucket tilt adapter for mini digger 150 is available as an option.
The S30 cutting bar mounts on the side arms with the S30 quick-attach system (both on the mechanical & hydraulic side arm). It cannot be mounted on the attachment coupling plate of the loader. S30 cutting bar is equipped with the same cutting blades and blade guides as the A35676 Cutting bar. The frame and actuator mechanism are however stronger, which means the S30 cutting bar is optimized for hedge cutting and doesn’t work too well with hay because of the higher frame. There are wear plates at each end of the cutting bar, useful when working on paved and asphalt surfaces for instance.
Avant 200 series is an amazingly powerful and versatile compact loader considering its small size. The basic ideology with the articulated design and hydraulic 4×4 transmission is the same as in bigger Avant’s. Easy access to driver’s seat, ample space for operator, logical and easy-to-use controls and excellent visibility to the working area guarantee efficient operation. The Avant quick attach system for attachments and hydraulic multi-connector are standard features as well. The 200 series is especially strong in driving attachments with its max 11.1 gal/min hydraulics flow. The wide Avant attachment range allows working all year round be it earthmoving, lawn mowing, digging, load handling, snow removal, etc. 200 series is much more than a ride-on lawn mower, compact tractor or a quad bike.
Avant was the first manufacturer to introduce a full-electric, battery-powered compact loader series to the market. Full electric loader with zero-emission and extremely low noise is the answer to future demands. Although the e series is electric it offers the same power and properties as the Avant 500 series which is equipped with a diesel engine. The Avant e5 has an integrated battery charger as standard, which makes it possible to charge batteries anywhere a 3-phase, 480 volt power outlet is available. Avant e5 is equipped with a maintenance-free Absorbent Glass Mat (AGM) battery. You can charge the e5 fully in 5 hours and work with it between one and two hours. This makes the e5 a very good option if your work allows you to charge for a longer period.
