| Operating Weight: | Canopy: 12,125 lbs. |
|---|---|
| Bucket Breakout Force: | 12,756 lbs. |
| Rated Horsepower: | 47.6 |
| Max Reach at Gound Level: | 20 ft. 1.4 in. |
| Maximum Torque (ft-lb): | 130.5 |
| Track Type: | Rubber |

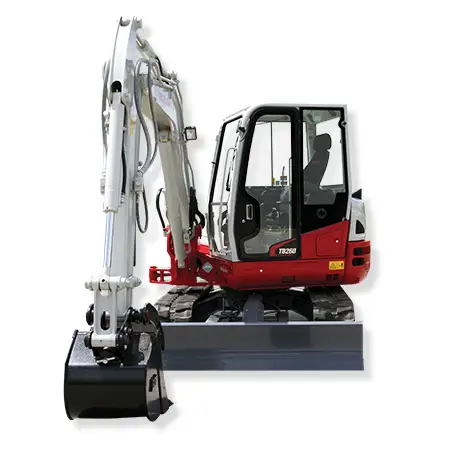

The Takeuchi TB260 compact excavator has exceptional power, performance, a wide working range, and impressive feature set. The cabin is spacious and well appointed ensuring operator comfort and efficiency.
The 48.8-hp DX55R-7 compact excavator offers impressive digging and lifting capabilities ideal for working on congested construction sites.
The reduced tail swing design extends just a few inches beyond the width of the excavator’s tracks, minimizing the chances of hitting objects or buildings when rotating the machine.
The increased counterweight enables offset digging without the need to reposition. The width-protected swing frame allows you to get closer to your work when operating against a structure or obstacle.
Other features include a backfill blade, a rubber track undercarriage and a steel track undercarriage option.
The 24.7 hp, 6,171 lb. DX27Z-7 mini excavator provides a new size class within the Develon lineup. Featuring a zero tail swing design and a 61-inch width, it can travel between homes on tight lot lines or work next to existing structures where other equipment doesn’t fit. Maneuverable and powerful, it can take on projects previously done using manual labor.
The DX27Z-7 features an increased, integrated counterweight to enhance digging and lifting performance, a backfill blade, and a rubber track undercarriage for superior flotation and traction. A long-arm option is available when you need more reach and dig depth.
DEVELON’s smallest mini excavator ever brings precision and performance to the tightest corners of your job site. With its retractable tracks and collapsible dozer blade, the do-it-all DEVELON 4200-lb class DX17Z-7 with a 16 hp engine puts you in perfect position, no matter the task. A thumb-ready arm and flush-face couplers for fast hydraulic hose connections give you attachment versatility. Ask your ACT Construction Equipment representative for more information.

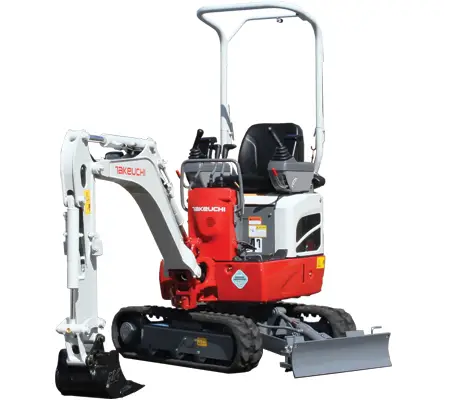

The TB210R delivers excellent performance in an ultra compact design. It has an impressive feature set that includes pattern change valve, pilot controls, retractable undercarriage, minimum tail swing, and a two post ROPS foldable frame. It’s the ideal excavator for the most confined applications.
