| Operating Weight: | Canopy: 7,485 lbs. |
|---|---|
| Operating Capacity: | 1,841 lbs. |
| Rated Horsepower: | 65,2 |
| Maximum Torque (ft-lb): | 144.3 |
| Track Type: | Rubber |
| Bucket Breakout Force: | 5,930 lbs. |

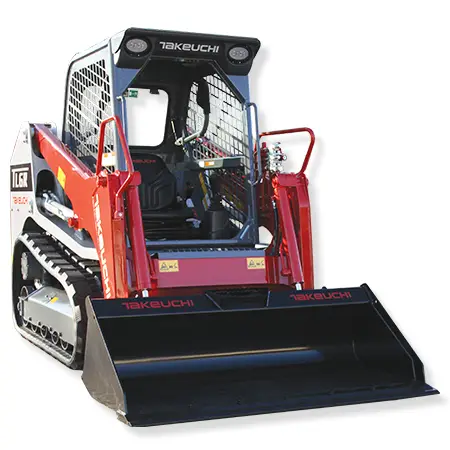

The TL6R features a radial lift loader design and meets all current emission standards. With a height of 6 ft 5.8 in and a width of just over 5 ft the dimensions of the TL6R allow it to excel on job sites that may have height and width restrictions. This track loader comes with a newly designed cabin with an overhead 5.7 color multi-informational display and backlit rocker switches that control a variety of machine functions. The TL6R comes standard with a quiet track design with flotation pads that reduces vibration, noise levels, and improves ride quality.
The TB250-2 is Takeuchi’s newest excavator in the 5 ton weight class filling the space between the current TB240 and TB260 models. It has an operating weight of 10,957 lbs. (canopy) to 11,288 lbs. (cab), a dig depth of 12 4.8 and max reach of over 20. Its 39 hp engine is Tier 4 final meeting all current EPA emissions regulations and provides outstanding access to all daily service points. The TB250-2 will come equipped with a primary auxiliary circuit capable of 24.2 gpm of flow making it an outstanding platform for many different hydraulic attachments.
Designed to work in confined, demanding applications, the Takeuchi TB225 features many advancements in performance and technology that make it an extremely versatile and productive machine. The TB225 sets itself apart by combining features from smaller excavators, such as hydraulically retractable undercarriage, with features from larger excavators, such as electronic throttle control and electronic proportional auxiliary control. All day comfort is provided by an adjustable suspension seat, large floor with integrated foot rests, ergonomically designed pilot controls, and adjustable arm rests.
The TB210R delivers excellent performance in an ultra compact design. It has an impressive feature set that includes pattern change valve, pilot controls, retractable undercarriage, minimum tail swing, and a two post ROPS foldable frame. It’s the ideal excavator for the most confined applications.
Takeuchi’s TL11R3 Compact Track Loader has an operating weight of 11,650 lbs and a 107.3-horsepower engine, making it a versatile and well-balanced machine that excels in a wide range of applications. Its radial lift boom design is engineered to deliver superior breakout forces, making the TL11R3 particularly well-suited for grading and dirt work. The TL11R3’s operator station features an intuitive 8-inch touchscreen multi-information display that integrates Bluetooth radio and air conditioning controls within the screen. It also includes a standard rearview camera, electric-over-hydraulic (EH) joystick controls, an adjustable suspension seat, and a large cup holder—all designed to keep operators informed, comfortable, and less fatigued. EH controls ensure smooth operation for both travel and loader functions while enabling a range of new features that optimize productivity. Additionally, a heavy-duty rear door and a tilt-up cab provide exceptional access to the TL11R3’s engine and routine inspection points.
