| Operating Weight: | Canopy: 8,990 lbs. |
|---|---|
| Rated Horsepower: | 35.8 |
| Digging Depth: | 11 ft. 4.4 in. |
| Max Reach at Gound Level: | 17 ft. 9.6 in. |
| Maximum Torque (ft-lb): | 102.6 |
| Track Type: | Rubber |

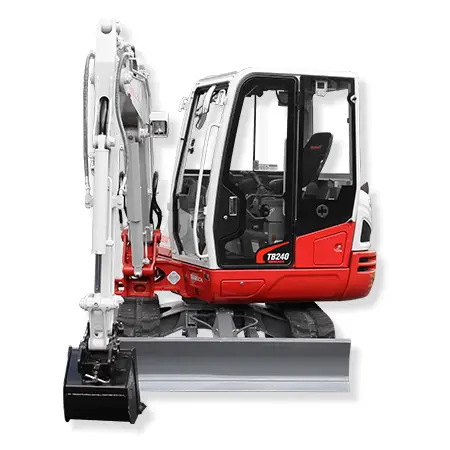

The TB240 provides exceptional power, performance, a wide working range, and an excellent feature set. The cabin is spacious and well appointed ensuring operator comfort and efficiency. The compact design of this excavator allows it to work in a wide range of applications and the standard tail swing provides greater stability.
The 48.8 hp Develon® DX50Z-7 mini excavator, part of the 5-metric-ton size class, offers a zero tail swing design ideal for doing challenging road building or construction projects in confined areas.
Featuring an all-Develon design, the DX50Z-7 includes an increased, integrated counterweight for improved balance when digging and lifting, a backfill blade, and a rubber track undercarriage for superior flotation and traction. A steel track undercarriage option is available for working around sharp objects.
Additional features include integrated slew brakes, torque-limiting piston pumps and a width-protected swing frame.
The 47-hp (net) DX42-7 conventional tail swing model delivers the power, maneuverability and versatility you expect from a DEVELON mini excavator.
Ideally sized for digging, lifting, backfilling and working in crowded or confined work areas, it features fast cycle times, efficient torque-limiting piston pumps that respond to load demands, and a larger counterweight to improve balance and durability.
The highly maneuverable, extremely versatile 24.7 hp DX35Z-7 mini excavator is engineered to take on challenging digging and lifting tasks in tight spaces.
The zero tail swing design makes navigating in urban areas and around confined worksites easier than ever. The increased counterweight helps decrease machine overhang and enhances digging and lifting performance.
Keep the standard arm for maximum breakout force and lifting ability, or choose the long-arm option to avoid machine repositioning or to make loading trucks faster and easier.
Other features include integrated slew brakes, rubber track undercarriage and backfill blade.

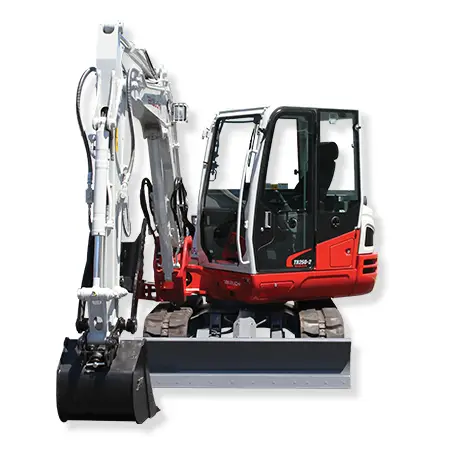

The TB250-2 is Takeuchi’s newest excavator in the 5 ton weight class filling the space between the current TB240 and TB260 models. It has an operating weight of 10,957 lbs. (canopy) to 11,288 lbs. (cab), a dig depth of 12 4.8 and max reach of over 20. Its 39 hp engine is Tier 4 final meeting all current EPA emissions regulations and provides outstanding access to all daily service points. The TB250-2 will come equipped with a primary auxiliary circuit capable of 24.2 gpm of flow making it an outstanding platform for many different hydraulic attachments.
