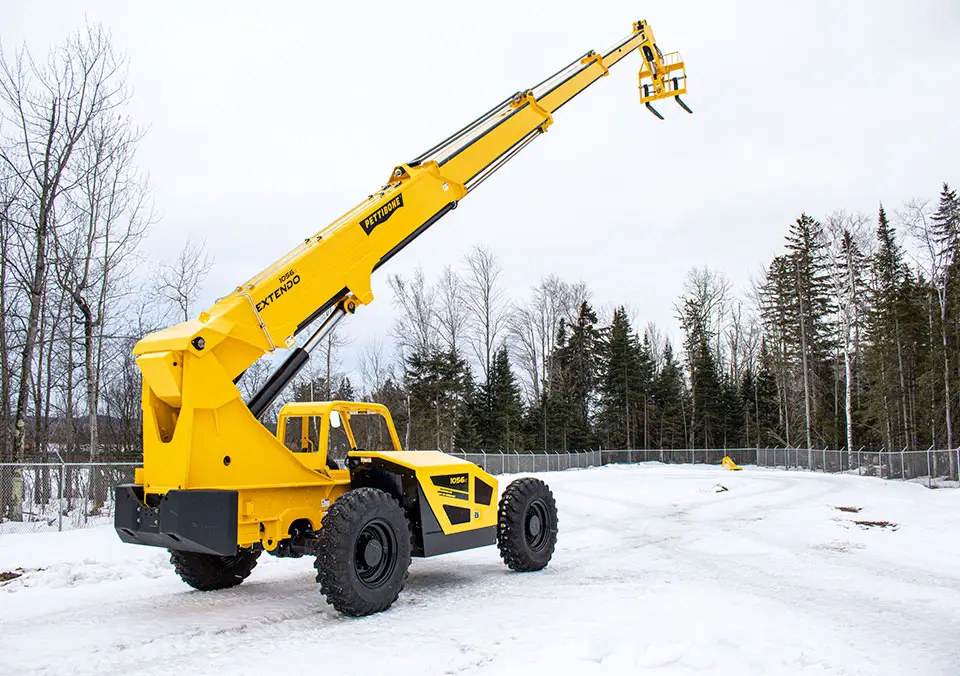

Pettibone Extendo 1056X
The Pettibone Traverse is the industry’s only line of telescopic handlers with an extendable boom that traverses horizontally. With up to 70 inches of horizontal boom transfer, users can place loads precisely without having to coordinate multiple boom functions, bringing an added level of safety and efficiency to the jobsite.
800.462.2447
Pettibone Extendo 1056X
Additional information
| Max Load Capacity: | 10,000 lbs. |
|---|---|
| Max Lift Height: | 56 ft. 6 in. |
| Landing Height: | 52 ft. |
| Rated Horsepower: | 117 |
| Travel Speed: | 15.2 mph |
The Extendo 1056X telehandler has a maximum load capacity of 10,000 pounds and a lift height of up to 56 feet, 6 inches. It comes with a Cummins or a Deutz Tier 4 Final diesel engine. Powered by a 117-horsepower Cummins QSF3.8 Tier 4 Final diesel engine with DEF and SCR aftertreatment. Side pod mounting allows for quick service access while maintaining excellent curbside visibility and ground clearance.
The drivetrain and axles have been designed to deliver more tractive effort with the least amount of compromise on top end speed.
High steer axles from the Dana 212 Series provide exceptional tractive effort, while the tight steer angle capability allows for a small turning radius.
The Extendo’s hydraulic circuit delivers exceptional controllability, efficiency and cycle speeds, while the cylinder cushioning dampens the end of strokes – both extending and retracting – to prevent hard, jarring stops and avoid both wear-and-tear and potential load spills.
